| Brand Name : | Aidacom |
| Price : | $6.50 |
| Supply Ability : | 1-2 weeks which depends on quantity |
| Payment Terms : | T/T, L/C, West Union, PayPal |
| Delivery Time : | 10-15 working days |

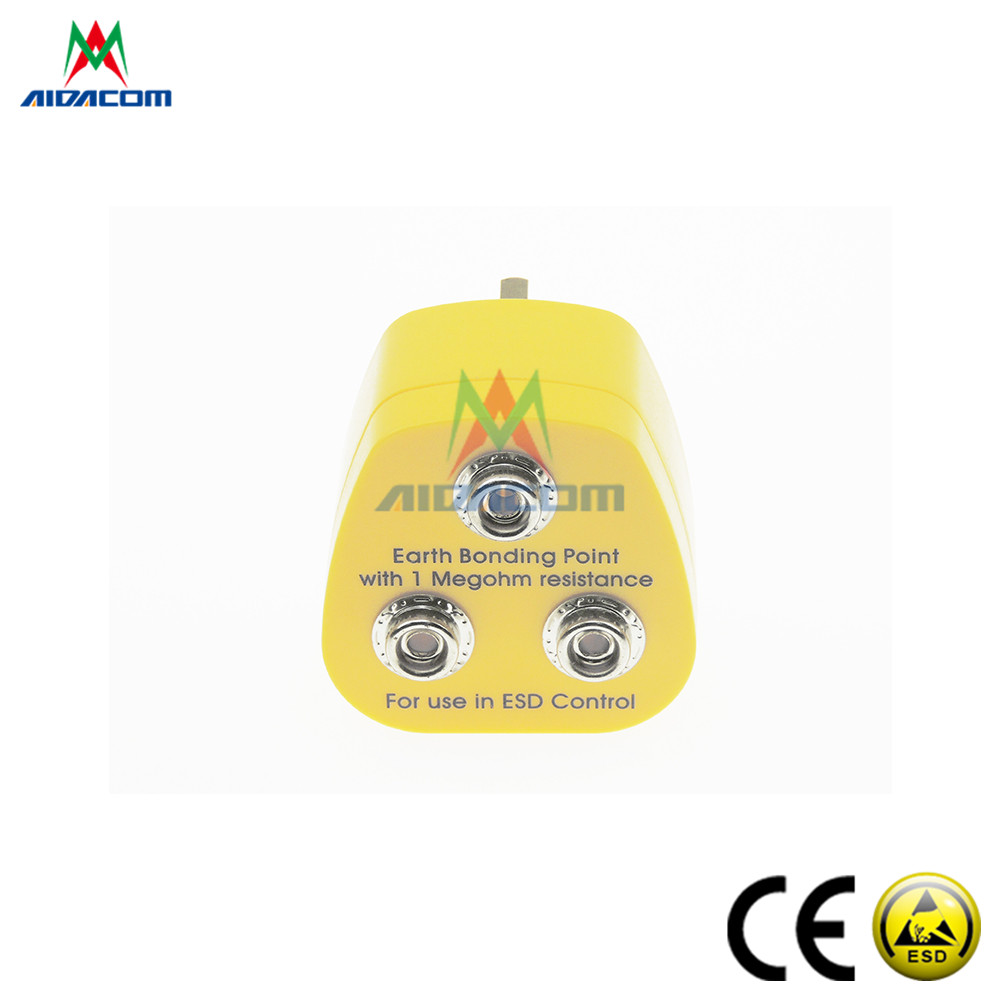

Earth Bonding Point plug is designed to provide safety and convenience earthing point in an EPA.
The plug fits into the mains supply socket, making a connection with the earth conductor only.
In place of the live and neutral pins are molded insulating plastic pins to allow positive location in the socket.
In the event of a workstation element becoming live. At 230V, the resistor limits the fault current to less than 0.3 mA.
It’s virtually impossible to misuse the plug, which is permanently sealed.
| Name | Earth Bonding Point |
| Color | Yellow |
| Size of plug casing | 50x50x32mm |
| Connector to earth pin resistance | 0.95-1.05M |
| Connector to connector resistance | approx 2M |
| Material | ABS |
| Version available | UK & EURO |
|
|
